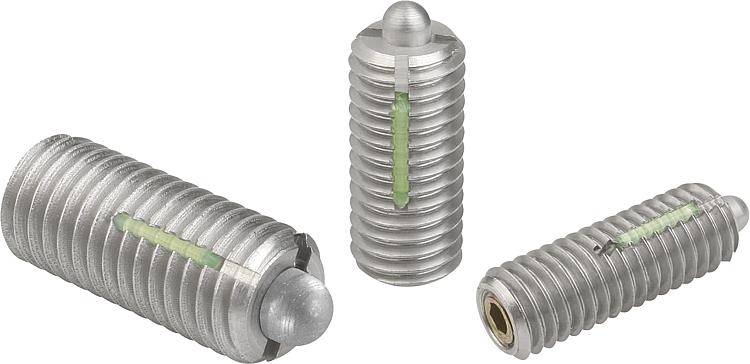

B0030Spring plungers with hex socket and thrust pin, stainless steel,... |
go back |
|
|
DescriptionMaterial:Sleeve 1.4305.
Thrust pin 1.4034.
Spring 1.4310.
Thread lock nylon. Version:Bright.

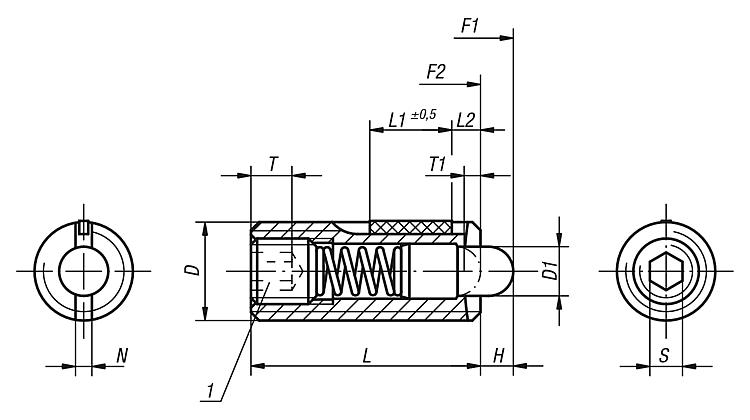

Thrust pin hardened.Drawing reference:L2 = ca. two full threads
1) grub screw glued-in DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |
Spring plungers with hex socket and thrust pin, standard spring force, with thread lock |
More information |
Order No.
| D | D1 | H | L | L1 | T1 | N | S | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Tightening
torque
approx. Nm | Loosening torque

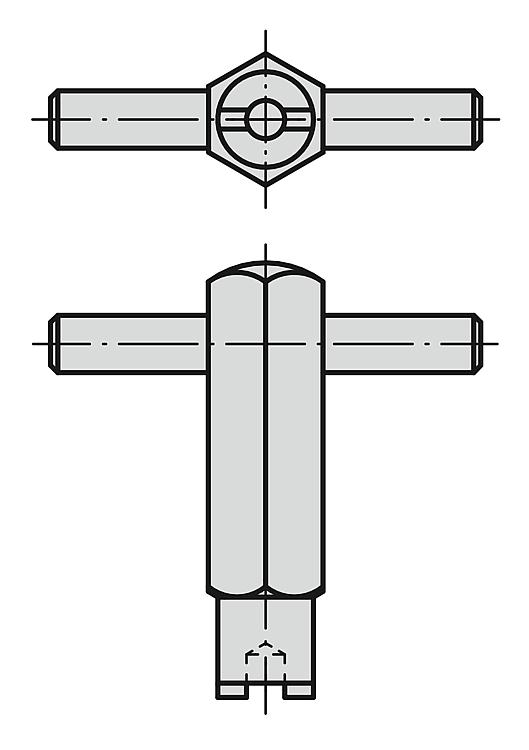

approx. Nm | Order No.
Assembly key | CAD | Acc. | Price | Order |
|---|
| B0030.05 | M5 | 2,4 | 2,3 | 18 | 7 | 0,8 | 0,8 | 1,5 | 5 | 17 | 0,12 | 0,08 | B0038.905 |  |  | 5.24 € | | | B0030.06 | M6 | 2,7 | 2,5 | 20 | 7 | 1 | 1 | 2 | 6 | 17 | 0,45 | 0,22 | B0038.906 | | | 5.24 € | | | B0030.08 | M8 | 3,5 | 3 | 22 | 8 | 1,4 | 1,2 | 2,5 | 7 | 29 | 1,05 | 0,37 | B0038.908 | | | 5.86 € | | | B0030.10 | M10 | 4 | 3 | 22 | 9 | 1,4 | 1,6 | 3 | 8 | 31 | 1,3 | 0,6 | B0038.910 | | | 6.79 € | | | B0030.12 | M12 | 6 | 4 | 28 | 10 | 2 | 2 | 4 | 10 | 47 | 2 | 1,3 | B0038.912 | | | 9.80 € | | | B0030.16 | M16 | 7,5 | 5 | 32 | 14 | 2,5 | 2,5 | 5 | 38 | 85 | 3,9 | 3 | B0038.916 | | | 15.36 € | |
|
Spring plungers with hex socket and thrust pin, heavy spring force, with thread lock |
More information |
Order No.
| D | D1 | H | L | L1 | T1 | N | S | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Tightening
torque
approx. Nm | Loosening torque
approx. Nm | Order No.
Assembly key | CAD | Acc. | Price | Order |
|---|
| B0030.205 | M5 | 2,4 | 2,3 | 18 | 7 | 0,8 | 0,8 | 1,5 | 9 | 26 | 0,12 | 0,08 | B0038.905 | | | 5.41 € | | | B0030.206 | M6 | 2,7 | 2,5 | 20 | 7 | 1 | 1 | 2 | 11 | 35 | 0,45 | 0,22 | B0038.906 | | | 5.41 € | | | B0030.208 | M8 | 3,5 | 3 | 22 | 8 | 1,4 | 1,2 | 2,5 | 15 | 48 | 1,05 | 0,37 | B0038.908 | | | 6.23 € | | | B0030.210 | M10 | 4 | 3 | 22 | 9 | 1,4 | 1,6 | 3 | 15 | 58 | 1,3 | 0,6 | B0038.910 | | | 7.22 € | | | B0030.212 | M12 | 6 | 4 | 28 | 10 | 2 | 2 | 4 | 19 | 74 | 2 | 1,3 | B0038.912 | | | 10.27 € | |
|
