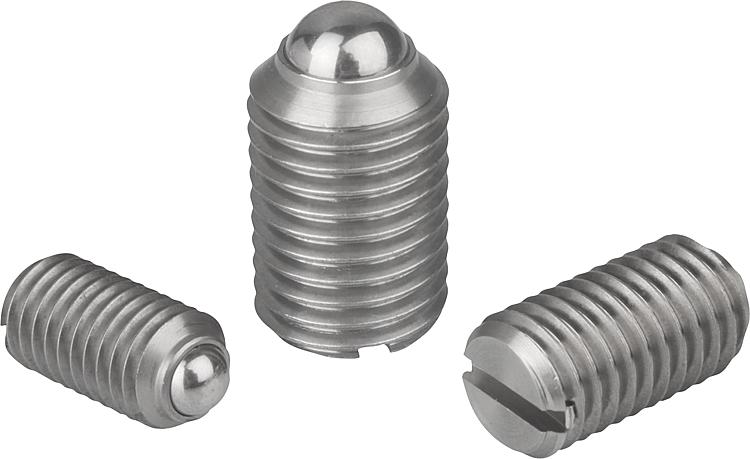

B0013Spring plungers with slot and ball, stainless steel |
go back |
|
|
DescriptionMaterial:Sleeve 1.4305.
Ball 1.4034.
Spring 1.4310. Version:Bright. Ball hardened.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

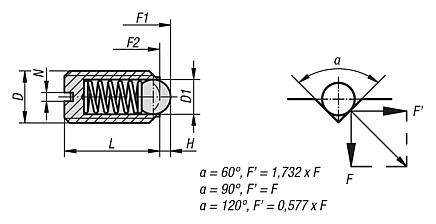

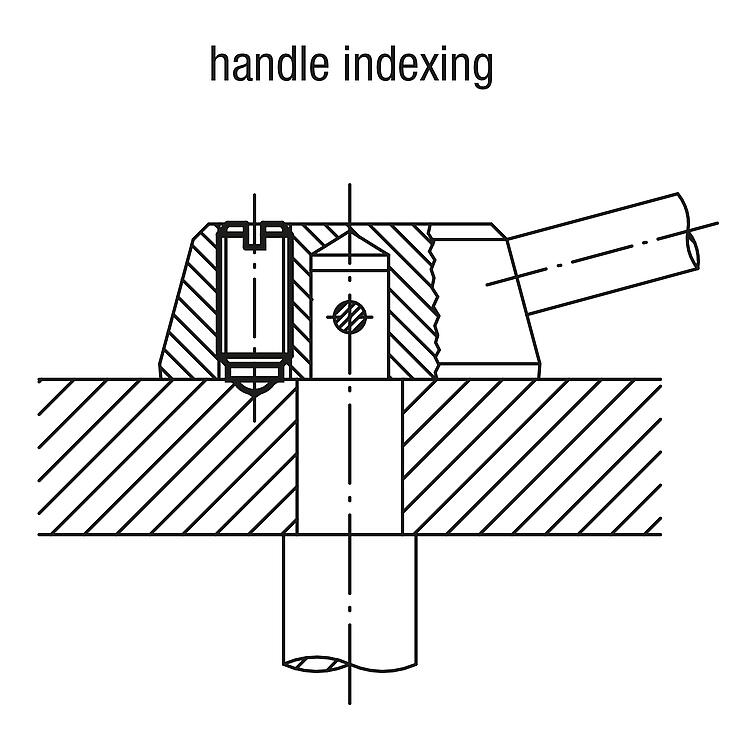

Drawings (total overview) |
Spring plungers with slot and ball, stainless steel, standard spring force |
More information |
Order No.
| D | D1 | L | H | N | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0013.03 | M3 | 1,5 | 7 | 0,4 | 0,4 | 1,5 | 3 |  | | 2.61 € | | | B0013.04 | M4 | 2,5 | 9 | 0,8 | 0,6 | 4 | 10 | | | 2.24 € | | | B0013.05 | M5 | 3 | 12 | 0,9 | 0,8 | 6 | 11 | | | 2.24 € | | | B0013.06 | M6 | 3,5 | 14 | 1 | 1 | 9 | 13 | | | 2.24 € | | | B0013.08 | M8 | 5 | 16 | 1,5 | 1,2 | 15 | 30 | | | 2.95 € | | | B0013.10 | M10 | 6 | 19 | 2 | 1,6 | 20 | 35 | | | 3.35 € | | | B0013.12 | M12 | 8 | 22 | 2,5 | 2 | 30 | 55 | | | 4.09 € | | | B0013.16 | M16 | 10 | 24 | 3,5 | 2,5 | 65 | 125 | | | 5.07 € | | | B0013.20 | M20 | 12 | 30 | 4,5 | 2,5 | 80 | 160 | | | 6.48 € | |
|
Spring plungers with slot and ball, stainless steel, strong spring force |
More information |
Order No.
| D | D1 | L | H | N | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0013.203 | M3 | 1,5 | 7 | 0,4 | 0,4 | 5 | 7 | | | 2.94 € | | | B0013.204 | M4 | 2,5 | 9 | 0,8 | 0,6 | 12 | 22 | | | 2.44 € | | | B0013.205 | M5 | 3 | 12 | 0,9 | 0,8 | 19 | 30 | | | 2.44 € | | | B0013.206 | M6 | 3,5 | 14 | 1 | 1 | 28 | 40 | | | 2.44 € | | | B0013.208 | M8 | 5 | 16 | 1,5 | 1,2 | 47 | 73 | | | 3.23 € | | | B0013.210 | M10 | 6 | 19 | 2 | 1,6 | 66 | 100 | | | 3.68 € | | | B0013.212 | M12 | 8 | 22 | 2,5 | 2 | 66 | 120 | | | 4.45 € | | | B0013.216 | M16 | 10 | 24 | 3,5 | 2,5 | 90 | 180 | | | 5.59 € | | | B0013.220 | M20 | 12 | 30 | 4,5 | 2,5 | 115 | 240 | | | 7.13 € | |
|
Spring plungers with slot and ball, stainless steel, long version, standard spring force |
More information |
Order No.
| D | D1 | L | H | N | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0013.404 | M4 | 2,5 | 16 | 0,8 | 0,6 | 4 | 10 | | | 2.65 € | | | B0013.405 | M5 | 3 | 20 | 0,9 | 0,8 | 6 | 11 | | | 2.65 € | | | B0013.406 | M6 | 3,5 | 25 | 1 | 1 | 9 | 13 | | | 2.65 € | | | B0013.408 | M8 | 5 | 30 | 1,5 | 1,2 | 15 | 30 | | | 3.52 € | | | B0013.410 | M10 | 6 | 35 | 2 | 1,6 | 20 | 35 | | | 4.00 € | | | B0013.412 | M12 | 8 | 40 | 2,5 | 2 | 30 | 55 | | | 4.89 € | | | B0013.416 | M16 | 10 | 45 | 3,5 | 2,5 | 65 | 125 | | | 6.09 € | |
|
