B0016Spring plungers with hexagon socket and ball, steel |
go back |
|
|
DescriptionMaterial:Sleeve steel grade 5.8.
Ball steel.
Spring grade D steel wire.Version:Black oxidised. Ball hardened.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

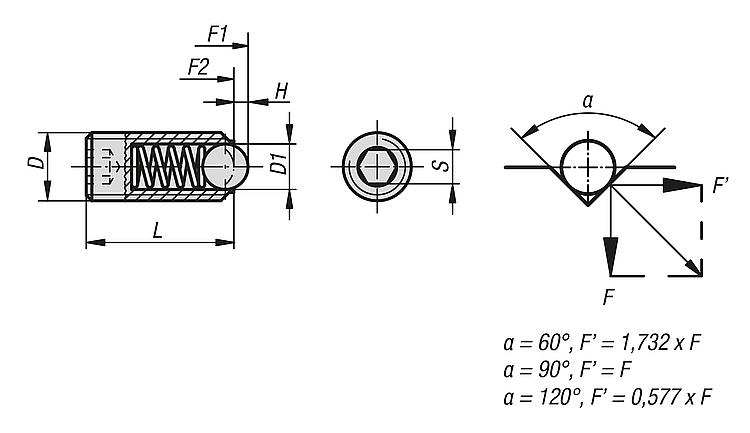

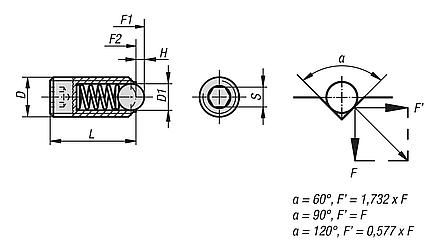

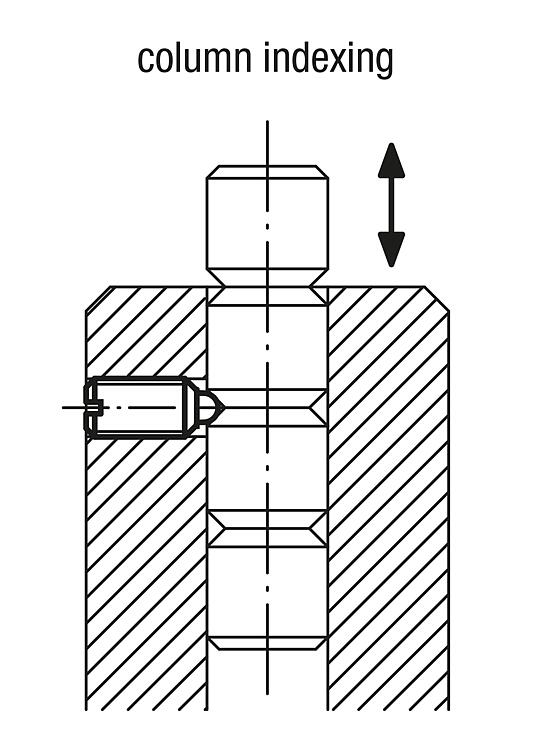

Drawings (total overview) |
Spring plungers with hexagon socket and ball, standard spring force |
More information |
Order No.
| D | D1 | H | L | S | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0016.03 | M3 | 1,5 | 0,4 | 9 | 1,5 | 1,5 | 3 |  | | 1.83 € | | | B0016.04 | M4 | 2,5 | 0,8 | 10 | 2 | 4 | 10 | | | 1.37 € | | | B0016.05 | M5 | 3 | 0,9 | 14 | 2,5 | 6 | 11 | | | 1.37 € | | | B0016.06 | M6 | 3,5 | 1 | 15 | 3 | 9 | 13 | | | 1.37 € | | | B0016.08 | M8 | 5 | 1,5 | 18 | 4 | 15 | 30 | | | 1.78 € | | | B0016.10 | M10 | 6 | 2 | 23 | 5 | 20 | 40 | | | 1.96 € | | | B0016.12 | M12 | 8 | 2,5 | 26 | 6 | 30 | 55 | | | 2.60 € | | | B0016.16 | M16 | 10 | 3,5 | 33 | 8 | 65 | 125 | | | 3.48 € | | | B0016.20 | M20 | 12 | 4,5 | 43 | 10 | 80 | 160 | | | 4.65 € | | | B0016.24 | M24 | 15 | 5,5 | 48 | 12 | 90 | 180 | | | 8.06 € | |
|
Spring plungers with hexagon socket and ball, strong spring force |
More information |
Order No.
| D | D1 | H | L | S | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0016.203 | M3 | 1,5 | 0,4 | 9 | 1,5 | 5 | 7 | | | 1.96 € | | | B0016.204 | M4 | 2,5 | 0,8 | 10 | 2 | 12 | 22 | | | 1.50 € | | | B0016.205 | M5 | 3 | 0,9 | 14 | 2,5 | 19 | 30 | | | 1.50 € | | | B0016.206 | M6 | 3,5 | 1 | 15 | 3 | 28 | 40 | | | 1.50 € | | | B0016.208 | M8 | 5 | 1,5 | 18 | 4 | 47 | 73 | | | 1.93 € | | | B0016.210 | M10 | 6 | 2 | 23 | 5 | 66 | 100 | | | 2.15 € | | | B0016.212 | M12 | 8 | 2,5 | 26 | 6 | 66 | 120 | | | 2.89 € | | | B0016.216 | M16 | 10 | 3,5 | 33 | 8 | 90 | 180 | | | 3.81 € | | | B0016.220 | M20 | 12 | 4,5 | 43 | 10 | 115 | 240 | | | 5.09 € | | | B0016.224 | M24 | 15 | 5,5 | 48 | 12 | 130 | 270 | | | 8.88 € | |
|
Spring plungers with hexagon socket and ball, long version, standard spring force |
More information |
Order No.
| D | D1 | H | L | S | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0016.404 | M4 | 2,5 | 0,8 | 16 | 2 | 4 | 10 | | | 1.85 € | | | B0016.405 | M5 | 3 | 0,9 | 20 | 2,5 | 6 | 11 | | | 1.85 € | | | B0016.406 | M6 | 3,5 | 1 | 25 | 3 | 9 | 13 | | | 1.85 € | | | B0016.408 | M8 | 5 | 1,5 | 30 | 4 | 15 | 30 | | | 2.29 € | | | B0016.410 | M10 | 6 | 2 | 35 | 5 | 20 | 40 | | | 2.54 € | | | B0016.412 | M12 | 8 | 2,5 | 40 | 6 | 30 | 55 | | | 3.40 € | | | B0016.416 | M16 | 10 | 3,5 | 45 | 8 | 65 | 125 | | | 4.43 € | |
|
