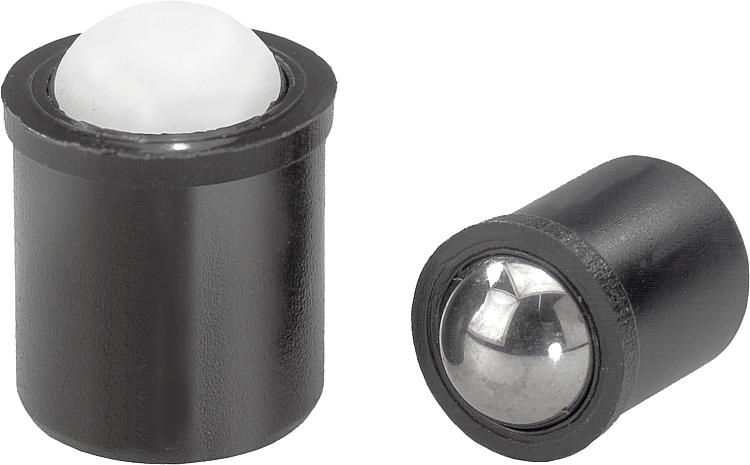

B0032Spring plungers smooth version, plastic |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Sleeve thermoplastic.
Spring stainless steel.
Ball stainless steel or POM.Version:Sleeve black.
Ball hardened, bright.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

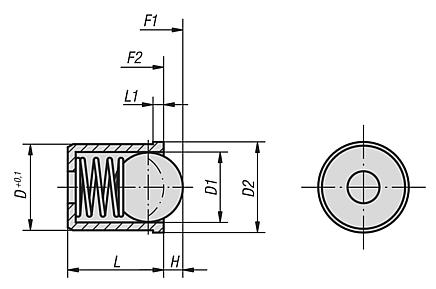

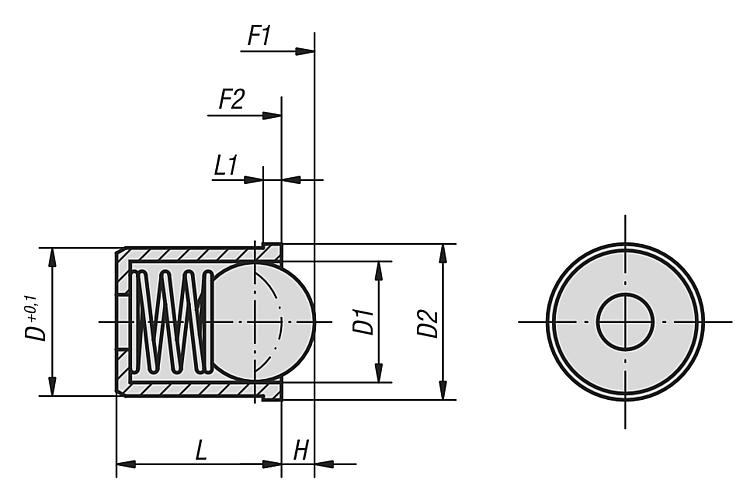

Order No.
| Component
material | D | D1 | D2 | H | L | L1 | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0032.04 | stainless steel | 4 | 3 | 4,6 | 0,7 | 5 | 1 | 3 | 7 |  | | 0.48 € | | | B0032.05 | stainless steel | 5 | 4 | 5,6 | 1 | 6 | 1 | 4 | 7 | | | 0.49 € | | | B0032.06 | stainless steel | 6 | 5 | 6,5 | 1,5 | 7 | 1 | 6 | 12 | | | 0.53 € | | | B0032.08 | stainless steel | 8 | 6,5 | 8,5 | 1,8 | 9 | 1 | 6 | 12 | | | 0.61 € | | | B0032.10 | stainless steel | 10 | 8 | 12 | 2,7 | 13,5 | 2,5 | 10 | 20 | | | 1.13 € | | | B0032.12 | stainless steel | 12 | 10 | 14 | 3,5 | 16 | 2,5 | 15 | 25 | | | 1.44 € | | | B0032.204 | POM | 4 | 3 | 4,6 | 0,7 | 5 | 1 | 3 | 7 | | | 0.55 € | | | B0032.205 | POM | 5 | 4 | 5,6 | 1 | 6 | 1 | 4 | 7 | | | 0.56 € | | | B0032.206 | POM | 6 | 5 | 6,5 | 1,5 | 7 | 1 | 6 | 12 | | | 0.59 € | | | B0032.208 | POM | 8 | 6,5 | 8,5 | 1,8 | 9 | 1 | 6 | 12 | | | 0.69 € | | | B0032.210 | POM | 10 | 8 | 12 | 2,7 | 13,5 | 2,5 | 10 | 20 | | | 1.32 € | | | B0032.212 | POM | 12 | 10 | 14 | 3,5 | 16 | 2,5 | 15 | 25 | | | 1.79 € | |
