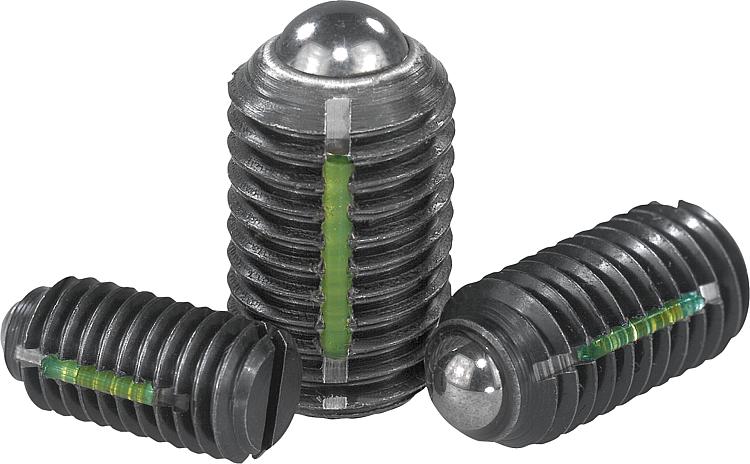

B0022Spring plungers with slot and ball, steel, with thread lock |
go back |
|
|
DescriptionMaterial:Sleeve steel grade 5.8.
Ball steel.
Spring grade D spring steel wire.

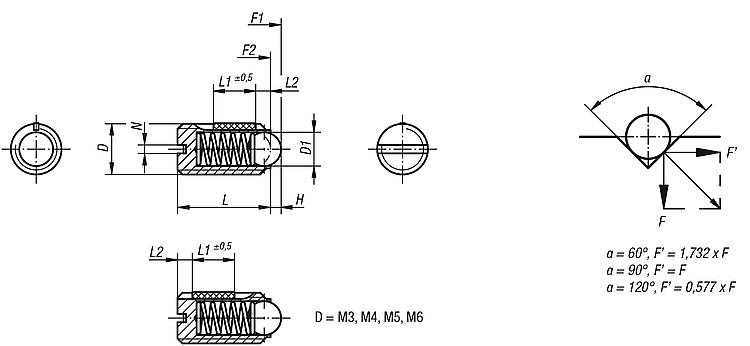

Thread lock nylon.Version:Black oxidised. Ball hardened.Drawing reference:L2 = approx. 2x thread pitch DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

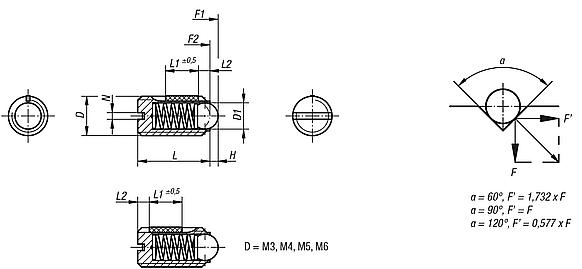

Drawings (total overview) |
Spring plungers with slot and ball, standard spring force, with thread lock |
More information |
Order No.
| D | D1 | H | L | L1 | N | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Tightening
torque
approx. Nm | Loosening torque
approx. Nm | CAD | Acc. | Price | Order |
|---|
| B0022.03 | M3 | 1,5 | 0,4 | 7 | 4 | 0,4 | 1,5 | 3 | 0,1 | 0,07 |  | | 1.47 € | | | B0022.04 | M4 | 2,5 | 0,8 | 9 | 5 | 0,6 | 4 | 10 | 0,18 | 0,12 | | | 1.29 € | | | B0022.05 | M5 | 3 | 0,9 | 12 | 6 | 0,8 | 6 | 11 | 0,12 | 0,08 | | | 1.31 € | | | B0022.06 | M6 | 3,5 | 1 | 14 | 7 | 1 | 9 | 13 | 0,43 | 0,21 | | | 1.36 € | | | B0022.08 | M8 | 5 | 1,5 | 16 | 8 | 1,2 | 15 | 30 | 1,09 | 0,37 | | | 1.62 € | | | B0022.10 | M10 | 6 | 2 | 19 | 9 | 1,6 | 20 | 40 | 1,36 | 0,62 | | | 1.67 € | | | B0022.12 | M12 | 8 | 2,5 | 22 | 10 | 2 | 30 | 55 | 2,03 | 1,36 | | | 3.41 € | | | B0022.16 | M16 | 10 | 3,5 | 24 | 14 | 2,5 | 65 | 125 | 3,95 | 2,95 | | | 5.00 € | |
|
Spring plungers with slot and ball, strong spring force, with thread lock |
More information |
Order No.
| D | D1 | H | L | L1 | N | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Tightening
torque
approx. Nm | Loosening torque
approx. Nm | CAD | Acc. | Price | Order |
|---|
| B0022.203 | M3 | 1,5 | 0,4 | 7 | 4 | 0,4 | 5 | 7 | 0,1 | 0,07 | | | 1.77 € | | | B0022.204 | M4 | 2,5 | 0,8 | 9 | 5 | 0,6 | 12 | 22 | 0,18 | 0,12 | | | 1.38 € | | | B0022.205 | M5 | 3 | 0,9 | 12 | 6 | 0,8 | 19 | 30 | 0,12 | 0,08 | | | 1.38 € | | | B0022.206 | M6 | 3,5 | 1 | 14 | 7 | 1 | 28 | 40 | 0,43 | 0,21 | | | 1.44 € | | | B0022.208 | M8 | 5 | 1,5 | 16 | 8 | 1,2 | 47 | 73 | 1,09 | 0,37 | | | 1.75 € | | | B0022.210 | M10 | 6 | 2 | 19 | 9 | 1,6 | 66 | 100 | 1,36 | 0,62 | | | 1.80 € | | | B0022.212 | M12 | 8 | 2,5 | 22 | 10 | 2 | 66 | 120 | 2,03 | 1,36 | | | 3.55 € | | | B0022.216 | M16 | 10 | 3,5 | 24 | 14 | 2,5 | 90 | 180 | 3,95 | 2,95 | | | 5.24 € | |
|
