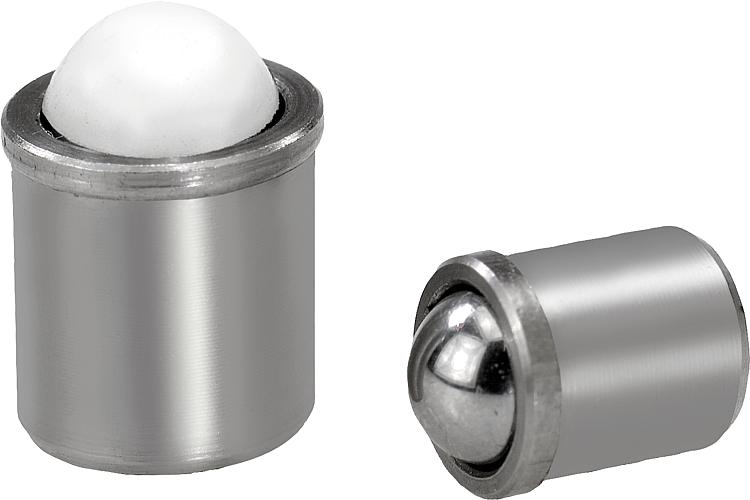

B0034Spring plungers smooth version, stainless steel |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Sleeve and spring stainless steel.
Ball stainless steel or POM.Version:Sleeve bright.
Steel ball hardened and bright.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

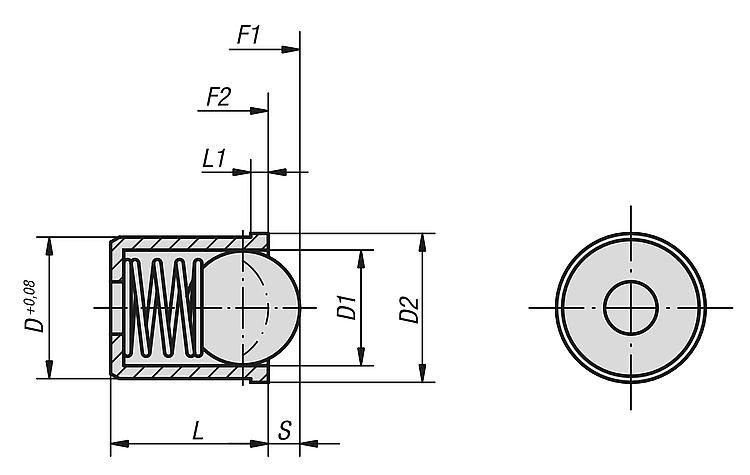

Order No.
| Component
material | D | D1 | D2 | L | L1 | Travel
S | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0034.02 | stainless steel | 2 | 1,5 | 2,5 | 3 | 0,6 | 0,4 | 1,2 | 2,5 |  | | 1.43 € | | | B0034.03 | stainless steel | 3 | 2,5 | 3,5 | 4 | 0,8 | 0,65 | 1,7 | 3,4 | | | 0.92 € | | | B0034.04 | stainless steel | 4 | 3 | 4,6 | 5 | 1 | 0,8 | 3 | 7 | | | 0.79 € | | | B0034.05 | stainless steel | 5 | 4 | 5,6 | 6 | 1 | 1 | 4 | 7 | | | 0.80 € | | | B0034.06 | stainless steel | 6 | 5 | 6,5 | 7 | 1 | 1,5 | 6 | 12 | | | 0.83 € | | | B0034.08 | stainless steel | 8 | 6,5 | 8,5 | 9 | 1 | 1,8 | 6 | 12 | | | 1.00 € | | | B0034.10 | stainless steel | 10 | 8 | 12 | 13,5 | 2,5 | 2,7 | 10 | 20 | | | 1.30 € | | | B0034.12 | stainless steel | 12 | 10 | 14 | 16 | 2,5 | 3,5 | 15 | 25 | | | 1.59 € | | | B0034.304 | POM | 4 | 3 | 4,6 | 5 | 1 | 0,6 | 3 | 7 | | | 0.88 € | | | B0034.305 | POM | 5 | 4 | 5,6 | 6 | 1 | 0,8 | 4 | 7 | | | 0.89 € | | | B0034.306 | POM | 6 | 5 | 6,5 | 7 | 1 | 1,3 | 6 | 12 | | | 0.91 € | | | B0034.308 | POM | 8 | 6,5 | 8,5 | 9 | 1 | 1,6 | 6 | 12 | | | 1.13 € | | | B0034.310 | POM | 10 | 8 | 12 | 13,5 | 2,5 | 2,6 | 10 | 20 | | | 1.44 € | | | B0034.312 | POM | 12 | 10 | 14 | 16 | 2,5 | 3,3 | 15 | 25 | | | 1.79 € | |
