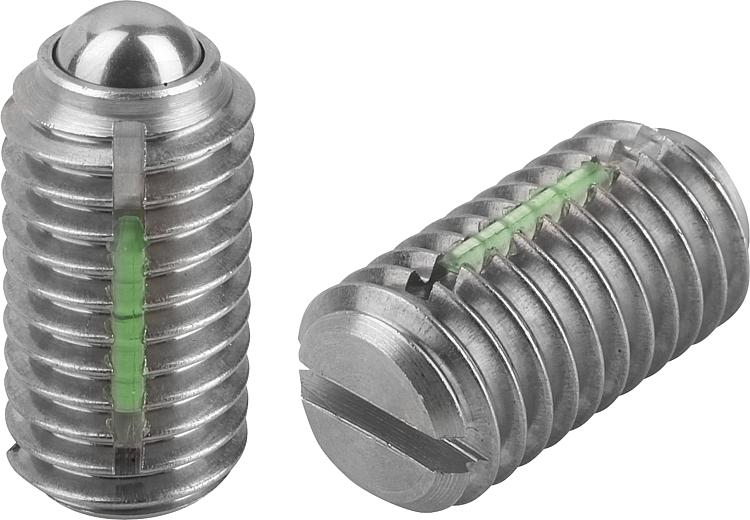

Spring plungers with slot and ball, stainless steel, standard spring force, with thread lock
B0023_SF

Spring plungers with slot and ball, stainless steel, standard...

go back

Item description/product images

DescriptionMaterial:

Sleeve 1.4305.
Ball 1.4034.
Spring 1.4310.

Thread lock nylon.

Version:Bright. Ball hardened.Drawing reference:
L2 = approx. 2x thread pitch
Special features:
Stainless steelRoHS

Drawings

Spring plungers with slot and ball, stainless steel, standard spring force, with thread lock

Item selection/filter

Order No.

DD1HLL1NSpring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
Tightening
torque
approx. Nm
Loosening torque
approx. Nm
CADAcc.PriceOrder
B0023.03M31,50,4740,41,530,10,07 3.21 €
B0023.04M42,50,8950,64100,180,12 2.85 €
B0023.05M530,91260,86110,120,08 2.94 €
B0023.06M63,5114719130,430,21 2.94 €
B0023.08M851,51681,215301,090,37 3.64 €
B0023.10M10621991,620351,360,62 4.11 €
B0023.12M1282,52210230552,031,36 6.15 €
B0023.16M16103,524142,5651253,952,95 8.36 €
