B0025_SF

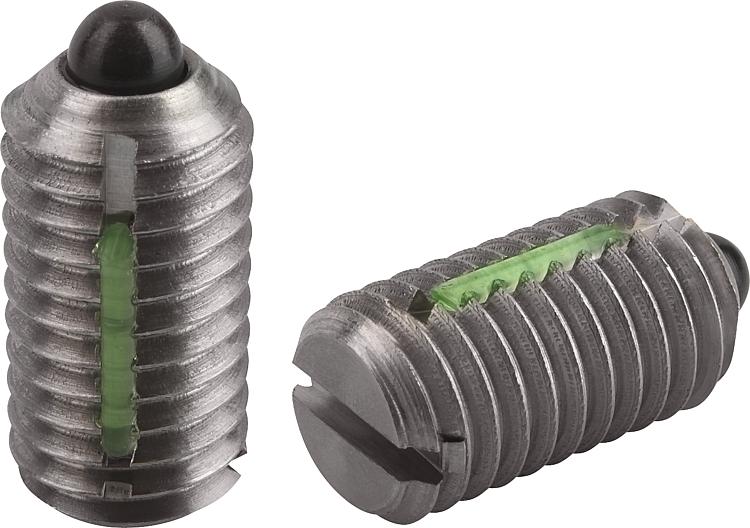

Spring plungers with slot and thrust pin, stainless steel,...

Item description/product images

DescriptionMaterial:Sleeve 1.4305.
Thrust pin 1.4034.
Spring 1.4310.

Thread lock nylon.Version:Bright.
Thrust pin hardened.Drawing reference:

L2 = approx. 2x thread pitch

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Order No.	D	D1	H	L	L1	N	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Loosening torque approx. Nm	Price
B0025.04	M4	1,8	1,5	9	5	0,6	6	20	0,18	0,12	2.91 €
B0025.05	M5	2,4	2	12	6	0,8	6	20	0,12	0,08	2.95 €
B0025.06	M6	2,7	2	14	7	1	7	20	0,44	0,21	3.08 €
B0025.08	M8	4	2	16	8	1,2	15	30	1,1	0,38	3.86 €
B0025.10	M10	4,5	2,5	19	9	1,6	20	35	1,36	0,62	4.42 €
B0025.12	M12	6	3,5	22	10	2	30	55	2,11	1,41	7.01 €
B0025.16	M16	8,5	4,5	24	14	2,5	45	100	3,95	3,05	9.45 €
