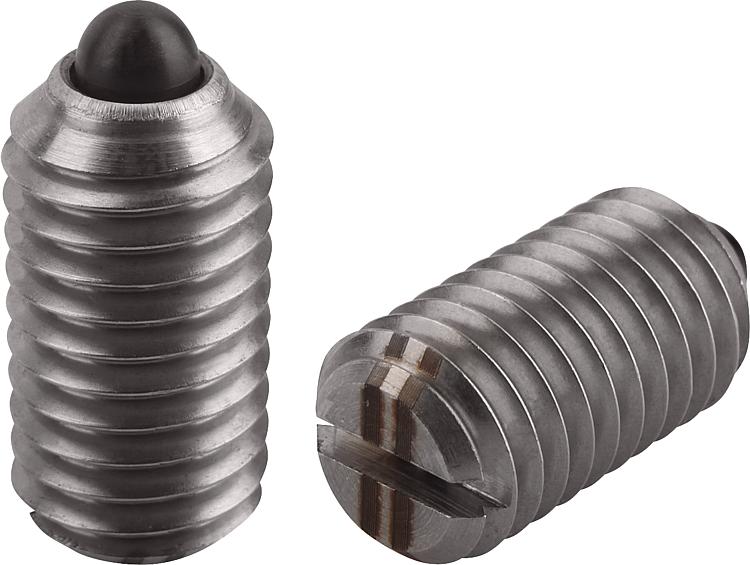

Spring plungers with slot and thrust pin, stainless steel, strong spring force
B0015_VF

Spring plungers with slot and thrust pin, stainless steel,...

go back

Item description/product images

DescriptionMaterial:

Sleeve 1.4305.
Thrust pin 1.4034.
Spring 1.4310.

Version:Bright.
Thrust pin hardened.
Special features:
Stainless steel
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0015_VF Spring plungers with slot and thrust pin, stainless steel, strong spring force 195 kB
 Datasheet B0015 Spring plungers with slot and thrust pin, reinforced spring force 195 kB

Drawings

Spring plungers with slot and thrust pin, stainless steel, strong spring force

Item selection/filter

Order No.Spring
strength
Main
material
DD1HLNSpring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
B0015.205intensifiedstainless steelM52,42120,8925 2.79 €
B0015.206intensifiedstainless steelM62,721411125 2.81 €
B0015.208intensifiedstainless steelM842161,22243 3.49 €
B0015.210intensifiedstainless steelM104,52,5191,62054 4.09 €
B0015.212intensifiedstainless steelM1263,52223694 5.35 €
B0015.216intensifiedstainless steelM168,54,5242,560110 6.54 €
