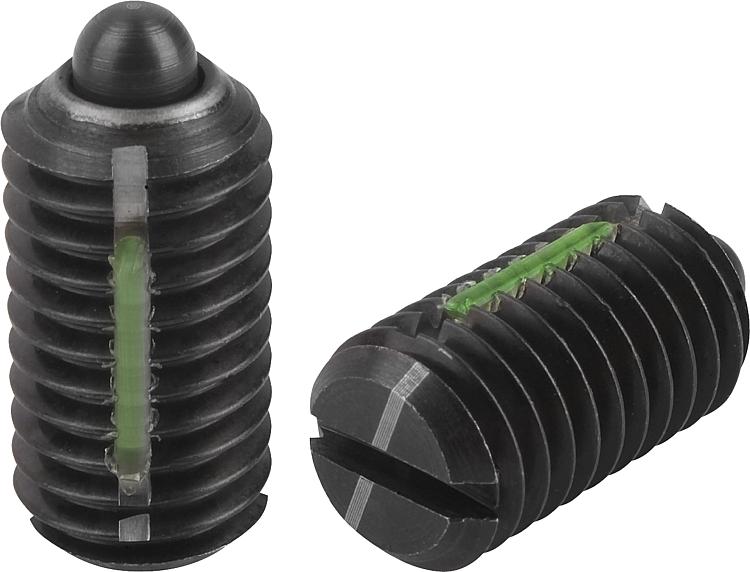

Spring plungers with slot and thrust pin, steel, light spring force, with thread lock
B0024_LF

Spring plungers with slot and thrust pin, steel, light spring...

go back

Item description/product images

DescriptionMaterial:Sleeve in steel grade 5.8;
thrust pin in steel.
Spring grade D spring steel wire.

Thread lock nylon.
Version:Black oxidised.
Thrust pin hardened.
Drawing reference:
L2 = approx. 2x thread pitch
Special features:
RoHS

Drawings

Spring plungers with slot and thrust pin, steel, light spring force, with thread lock

Item selection/filter

Order No.

DD1HLL1NSpring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
Tightening
torque
approx. Nm
Loosening torque
approx. Nm
CADAcc.PriceOrder
B0024.104M41,81,5950,63100,180,12 1.53 €
B0024.105M52,421260,83100,120,08 1.57 €
B0024.106M62,7214714100,440,21 1.59 €
B0024.108M8421681,27151,10,38 1.80 €
B0024.110M104,52,51991,69161,360,62 1.87 €
B0024.112M1263,52210214262,111,41 3.68 €
B0024.116M168,54,524142,522503,953,05 5.36 €
