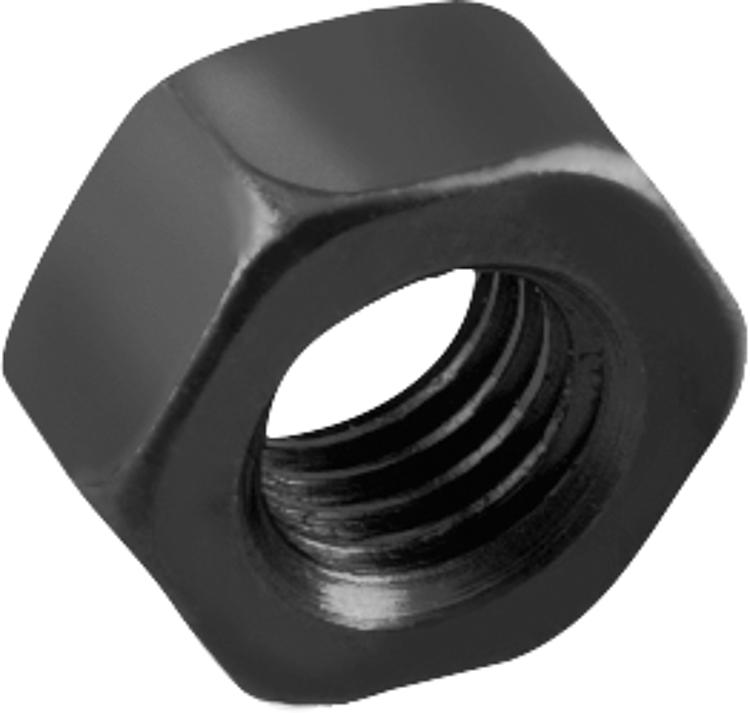

B0101_STHexagon nuts DIN 934, steel |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel.Version:Steel grade 8, bright or electro zinc-plated.
Steel grade 10, bright or electro zinc-plated.
Steel grade 12, bright.Note:The grade of a nut must always be the same or higher than the grade of a bolt. That is, bolts in grade 8.8 are always paired with a nut in grade 8 (or higher, but never lower).
The maximum nut height H max. is shown in the table.On request:DIN ISO 272 spanner sizes. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Material
| Surface finish
body | Grade | D | E | H | SW | DIN | CAD | Acc. | Price | Order |
|---|
| B0101.025 | steel | bright (black) | 8 | M2,5 | 5,45 | 2 | 5 | DIN 934 |  | | 0.11 € | | | B0101.03 | steel | bright (black) | 8 | M3 | 6,01 | 2,4 | 5,5 | DIN 934 | | | 0.11 € | | | B0101.04 | steel | bright (black) | 8 | M4 | 7,66 | 3,2 | 7 | DIN 934 | | | 0.11 € | | | B0101.05 | steel | bright (black) | 8 | M5 | 8,79 | 4 | 8 | DIN 934 | | | 0.11 € | | | B0101.06 | steel | bright (black) | 8 | M6 | 11,05 | 5 | 10 | DIN 934 | | | 0.11 € | | | B0101.08 | steel | bright (black) | 8 | M8 | 14,38 | 6,5 | 13 | DIN 934 | | | 0.11 € | | | B0101.10 | steel | bright (black) | 8 | M10 | 18,9 | 8 | 17 | DIN 934 | | | 0.19 € | | | B0101.12 | steel | bright (black) | 8 | M12 | 21,1 | 10 | 19 | DIN 934 | | | 0.19 € | | | B0101.14 | steel | bright (black) | 8 | M14 | 23,9 | 11 | 22 | DIN 934 | | | 0.28 € | | | B0101.16 | steel | bright (black) | 8 | M16 | 26,76 | 13 | 24 | DIN 934 | | | 0.30 € | | | B0101.20 | steel | bright (black) | 8 | M20 | 32,95 | 16 | 30 | DIN 934 | | | 0.53 € | | | B0101.22 | steel | bright (black) | 8 | M22 | 35 | 18 | 32 | DIN 934 | | | 0.93 € | | | B0101.24 | steel | bright (black) | 8 | M24 | 39,6 | 19 | 36 | DIN 934 | | | 1.13 € | | | B0101.27 | steel | bright (black) | 8 | M27 | 45,2 | 22 | 41 | DIN 934 | | | 1.70 € | | | B0101.30 | steel | bright (black) | 8 | M30 | 50,9 | 24 | 46 | DIN 934 | | | 2.51 € | | | B0101.33 | steel | bright (black) | 8 | M33 | 55,4 | 26 | 50 | DIN 934 | | | 3.27 € | | | B0101.36 | steel | bright (black) | 8 | M36 | 60,8 | 29 | 55 | DIN 934 | | | 4.15 € | | | B0101.2025 | steel | galvanised | 8 | M2,5 | 5,45 | 2 | 5 | DIN 934 | | | 0.12 € | | | B0101.203 | steel | galvanised | 8 | M3 | 6,01 | 2,4 | 5,5 | DIN 934 | | | 0.12 € | | | B0101.204 | steel | galvanised | 8 | M4 | 7,66 | 3,2 | 7 | DIN 934 | | | 0.12 € | | | B0101.205 | steel | galvanised | 8 | M5 | 8,79 | 4 | 8 | DIN 934 | | | 0.12 € | | | B0101.206 | steel | galvanised | 8 | M6 | 11,05 | 5 | 10 | DIN 934 | | | 0.12 € | | | B0101.208 | steel | galvanised | 8 | M8 | 14,38 | 6,5 | 13 | DIN 934 | | | 0.12 € | | | B0101.210 | steel | galvanised | 8 | M10 | 18,9 | 8 | 17 | DIN 934 | | | 0.20 € | | | B0101.212 | steel | galvanised | 8 | M12 | 21,1 | 10 | 19 | DIN 934 | | | 0.20 € | | | B0101.214 | steel | galvanised | 8 | M14 | 23,9 | 11 | 22 | DIN 934 | | | 0.29 € | | | B0101.216 | steel | galvanised | 8 | M16 | 26,76 | 13 | 24 | DIN 934 | | | 0.32 € | | | B0101.220 | steel | galvanised | 8 | M20 | 32,95 | 16 | 30 | DIN 934 | | | 0.56 € | | | B0101.222 | steel | galvanised | 8 | M22 | 35 | 18 | 32 | DIN 934 | | | 0.97 € | | | B0101.224 | steel | galvanised | 8 | M24 | 39,6 | 19 | 36 | DIN 934 | | | 1.24 € | | | B0101.227 | steel | galvanised | 8 | M27 | 45,2 | 22 | 41 | DIN 934 | | | 1.76 € | | | B0101.230 | steel | galvanised | 8 | M30 | 50,9 | 24 | 46 | DIN 934 | | | 2.72 € | | | B0101.233 | steel | galvanised | 8 | M33 | 55,4 | 26 | 50 | DIN 934 | | | 3.72 € | | | B0101.236 | steel | galvanised | 8 | M36 | 60,8 | 29 | 55 | DIN 934 | | | 4.65 € | | | B0101.403 | steel | bright (black) | 10 | M3 | 6,01 | 2,4 | 5,5 | DIN 934 | | | 0.13 € | | | B0101.404 | steel | bright (black) | 10 | M4 | 7,66 | 3,2 | 7 | DIN 934 | | | 0.13 € | | | B0101.405 | steel | bright (black) | 10 | M5 | 8,79 | 4 | 8 | DIN 934 | | | 0.13 € | | | B0101.406 | steel | bright (black) | 10 | M6 | 11,05 | 5 | 10 | DIN 934 | | | 0.13 € | | | B0101.408 | steel | bright (black) | 10 | M8 | 14,38 | 6,5 | 13 | DIN 934 | | | 0.13 € | | | B0101.410 | steel | bright (black) | 10 | M10 | 18,9 | 8 | 17 | DIN 934 | | | 0.25 € | | | B0101.412 | steel | bright (black) | 10 | M12 | 21,1 | 10 | 19 | DIN 934 | | | 0.25 € | | | B0101.414 | steel | bright (black) | 10 | M14 | 23,9 | 11 | 22 | DIN 934 | | | 0.32 € | | | B0101.416 | steel | bright (black) | 10 | M16 | 26,76 | 13 | 24 | DIN 934 | | | 0.50 € | | | B0101.420 | steel | bright (black) | 10 | M20 | 32,95 | 16 | 30 | DIN 934 | | | 0.80 € | | | B0101.422 | steel | bright (black) | 10 | M22 | 35 | 18 | 32 | DIN 934 | | | 1.19 € | | | B0101.424 | steel | bright (black) | 10 | M24 | 39,6 | 19 | 36 | DIN 934 | | | 1.28 € | | | B0101.427 | steel | bright (black) | 10 | M27 | 45,2 | 22 | 41 | DIN 934 | | | 2.20 € | | | B0101.430 | steel | bright (black) | 10 | M30 | 50,9 | 24 | 46 | DIN 934 | | | 2.80 € | | | B0101.433 | steel | bright (black) | 10 | M33 | 55,4 | 26 | 50 | DIN 934 | | | 3.84 € | | | B0101.436 | steel | bright (black) | 10 | M36 | 60,8 | 29 | 55 | DIN 934 | | | 4.88 € | | | B0101.304 | steel | galvanised | 10 | M4 | 7,66 | 3,2 | 7 | DIN 934 | | | 0.14 € | | | B0101.305 | steel | galvanised | 10 | M5 | 8,79 | 4 | 8 | DIN 934 | | | 0.14 € | | | B0101.306 | steel | galvanised | 10 | M6 | 11,05 | 5 | 10 | DIN 934 | | | 0.14 € | | | B0101.308 | steel | galvanised | 10 | M8 | 14,38 | 6,5 | 13 | DIN 934 | | | 0.19 € | | | B0101.310 | steel | galvanised | 10 | M10 | 18,9 | 8 | 17 | DIN 934 | | | 0.32 € | | | B0101.312 | steel | galvanised | 10 | M12 | 21,1 | 10 | 19 | DIN 934 | | | 0.32 € | | | B0101.314 | steel | galvanised | 10 | M14 | 23,9 | 11 | 22 | DIN 934 | | | 0.48 € | | | B0101.316 | steel | galvanised | 10 | M16 | 26,76 | 13 | 24 | DIN 934 | | | 0.56 € | | | B0101.320 | steel | galvanised | 10 | M20 | 32,95 | 16 | 30 | DIN 934 | | | 0.88 € | | | B0101.322 | steel | galvanised | 10 | M22 | 35 | 18 | 32 | DIN 934 | | | 1.28 € | | | B0101.324 | steel | galvanised | 10 | M24 | 39,6 | 19 | 36 | DIN 934 | | | 1.32 € | | | B0101.327 | steel | galvanised | 10 | M27 | 45,2 | 22 | 41 | DIN 934 | | | 2.25 € | | | B0101.330 | steel | galvanised | 10 | M30 | 50,9 | 24 | 46 | DIN 934 | | | 2.87 € | | | B0101.333 | steel | galvanised | 10 | M33 | 55,4 | 26 | 50 | DIN 934 | | | 4.99 € | | | B0101.336 | steel | galvanised | 10 | M36 | 60,8 | 29 | 55 | DIN 934 | | | 6.09 € | | | B0101.506 | steel | bright (black) | 12 | M6 | 11,05 | 5 | 10 | DIN 934 | | | 0.25 € | | | B0101.508 | steel | bright (black) | 12 | M8 | 14,38 | 6,5 | 13 | DIN 934 | | | 0.26 € | | | B0101.510 | steel | bright (black) | 12 | M10 | 18,9 | 8 | 17 | DIN 934 | | | 0.53 € | | | B0101.512 | steel | bright (black) | 12 | M12 | 21,1 | 10 | 19 | DIN 934 | | | 0.75 € | | | B0101.516 | steel | bright (black) | 12 | M16 | 26,76 | 13 | 24 | DIN 934 | | | 1.34 € | | | B0101.520 | steel | bright (black) | 12 | M20 | 32,95 | 16 | 30 | DIN 934 | | | 2.26 € | | | B0101.524 | steel | bright (black) | 12 | M24 | 39,6 | 19 | 36 | DIN 934 | | | 3.79 € | | | B0101.527 | steel | bright (black) | 12 | M27 | 45,2 | 22 | 41 | DIN 934 | | | 5.09 € | | | B0101.530 | steel | bright (black) | 12 | M30 | 50,9 | 24 | 46 | DIN 934 | | | 5.34 € | | | B0101.536 | steel | bright (black) | 12 | M36 | 60,8 | 29 | 55 | DIN 934 | | | 9.43 € | |
