B0027_VF

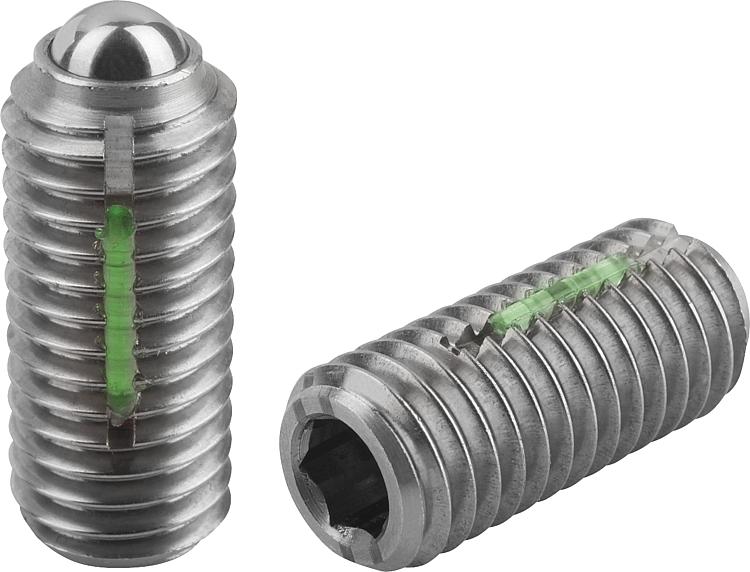

Spring plungers with hex socket and ball, stainless steel, heavy...

Item description/product images

DescriptionMaterial:

Sleeve 1.4305.
Ball 1.4034.
Spring 1.4310.

Thread lock nylon.

Version:Bright. Ball hardened.Drawing reference:

L2 = approx. 2x thread pitch

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Order No.	D	D1	H	L	L1	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Loosening torque approx. Nm	Price
B0027.203	M3	1,5	0,4	9	4	1,5	5	7	0,1	0,07	5.45 €
B0027.204	M4	2,5	0,8	10	5	2	12	22	0,18	0,12	4.82 €
B0027.205	M5	3	0,9	14	6	2,5	19	30	0,12	0,08	4.77 €
B0027.206	M6	3,5	1	15	7	3	28	40	0,44	0,21	4.77 €
B0027.208	M8	5	1,5	18	8	4	47	73	1,1	0,38	5.10 €
B0027.210	M10	6	2	23	9	5	66	100	1,3	0,6	5.90 €
B0027.212	M12	8	2,5	26	10	6	66	120	2	1,3	8.96 €
B0027.216	M16	10	3,5	33	14	8	90	180	3,9	3	14.09 €
