B0027_SF

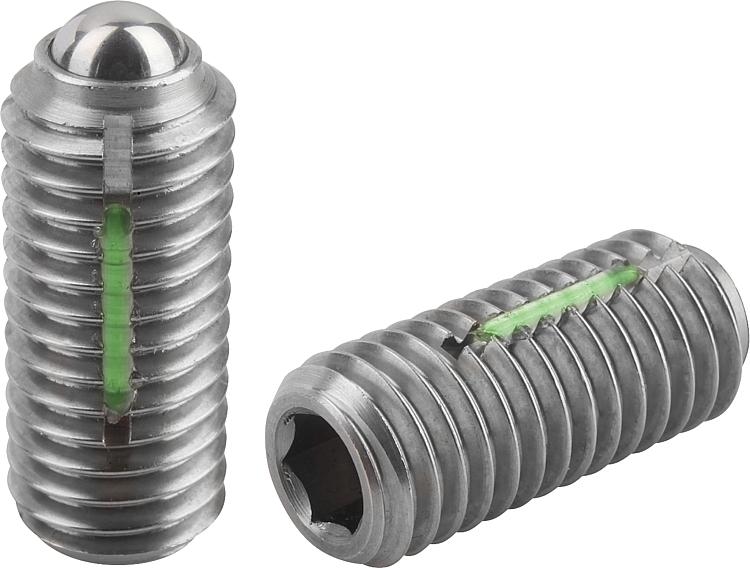

Spring plungers with hexagon socket and ball, stainless steel,...

Item description/product images

DescriptionMaterial:

Sleeve 1.4305.
Ball 1.4034.
Spring 1.4310.

Thread lock nylon.

Version:Bright. Ball hardened.Drawing reference:

L2 = approx. 2x thread pitch

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Order No.	D	D1	H	L	L1	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Loosening torque approx. Nm	Price
B0027.03	M3	1,5	0,4	9	4	1,5	1,5	3	0,1	0,07	5.04 €
B0027.04	M4	2,5	0,8	10	5	2	4	10	0,18	0,12	4.48 €
B0027.05	M5	3	0,9	14	6	2,5	6	11	0,12	0,08	4.42 €
B0027.06	M6	3,5	1	15	7	3	9	13	0,44	0,21	4.39 €
B0027.08	M8	5	1,5	18	8	4	15	30	1,1	0,38	4.74 €
B0027.10	M10	6	2	23	9	5	20	35	1,3	0,6	5.43 €
B0027.12	M12	8	2,5	26	10	6	30	55	2	1,3	8.33 €
B0027.16	M16	10	3,5	33	14	8	65	125	3,9	3	13.14 €
